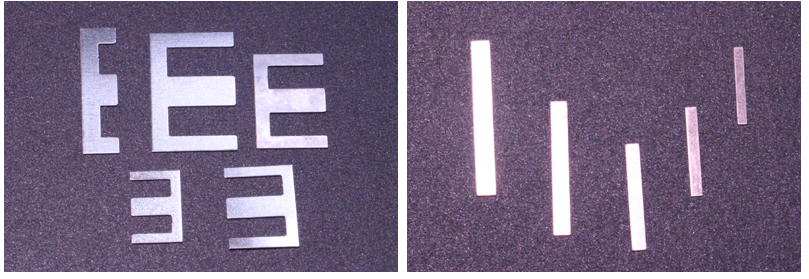

Nickel laminations

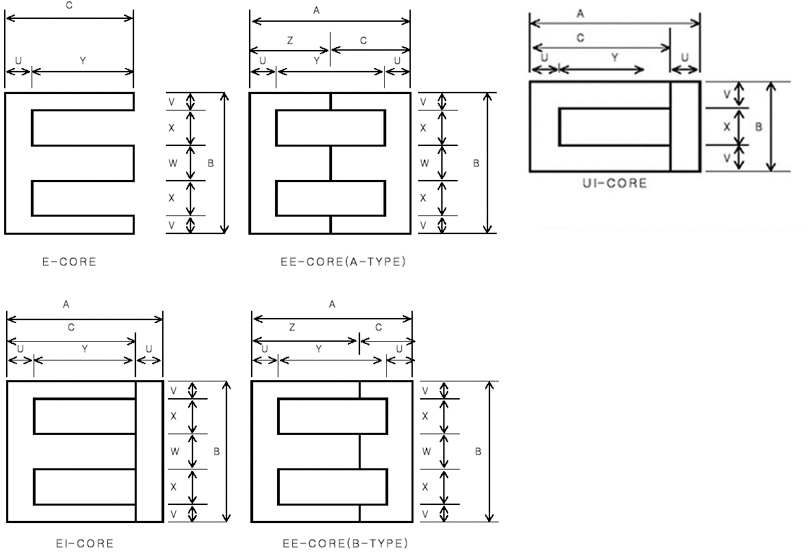

| TYPE |
A |
B |
C |
U |
V |
W |
X |
Y |
Z |
pdf |
| ED-8(8X11) |
- |
8 |
11 |
2.7 |
1.2 |
2.4 |
1.6 |
8.3 |
- |
|
| ED-8LE(8.1X13.65) |
- |
8.1 |
13.65 |
2.75 |
1.405 |
2.45 |
1.42 |
10.9 |
- |
|
| ED-8(8X13.6) |
- |
8 |
13.6 |
2.8 |
1.2 |
2.5 |
1.55 |
10.8 |
- |
|
| ED-8(8.26X13.59) |
- |
8.26 |
13.59 |
2.72 |
1.33 |
2.4 |
1.6 |
10.87 |
- |
|
| ED-8LE(8X14) |
- |
8 |
14 |
2.7 |
1.2 |
2.4 |
1.6 |
11.3 |
- |
|
| ED-8LE(8X16) |
- |
8 |
16 |
2.7 |
1.2 |
2.4 |
1.6 |
13.3 |
- |
|
| EE3031EL |
- |
9.525 |
9.525 |
1.19 |
1.19 |
2.385 |
2.38 |
8.335 |
- |
|
| 10-9.5LE |
- |
10 |
9.5 |
2 |
1.35 |
2.5 |
2.4 |
7.5 |
- |
|
| ED-12.6 |
- |
12.6 |
17 |
4.1 |
1.9 |
3.8 |
2.5 |
12.9 |
- |
|
| 12.7LE |
- |
12.72 |
11.11 |
1.58 |
1.59 |
3.18 |
3.18 |
9.53 |
- |
|
| 13.5LE |
- |
13.5 |
16 |
2.4 |
2.2 |
4.8 |
2.15 |
13.6 |
- |
|
| ED-16 |
- |
16 |
21 |
4.9 |
2.4 |
4.8 |
3.2 |
16.1 |
- |
|
| ED-20 |
- |
20 |
26 |
6 |
0.3 |
6 |
4 |
20 |
- |
|
| ED-25 |
- |
25 |
33 |
7.8 |
3.8 |
7.6 |
4.9 |
25.2 |
- |
|
| 14EI |
10.5 |
14 |
8.75 |
1.75 |
1.75 |
3.5 |
3.5 |
7 |
- |
|
| 14LE |
- |
14 |
10.5 |
1.75 |
1.75 |
3.5 |
3.5 |
8.75 |
- |
|
| 14-12E |
- |
14 |
12 |
2.5 |
1.75 |
3.5 |
3.5 |
9.5 |
- |
|
| 15.2E |
- |
15.24 |
10.795 |
1.905 |
1.905 |
3.81 |
3.81 |
8.89 |
- |
|
| 16EI |
14 |
16 |
12 |
2 |
2 |
4 |
4 |
10 |
- |
|
| 16LE |
- |
16 |
14 |
2 |
2 |
4 |
4 |
12 |
- |
|
| 16LE(LOSS TYPE) |
- |
16 |
16 |
2.4 |
2.4 |
4.8 |
3.2 |
13.6 |
- |
|
| 16UI |
18.1 |
16.6 |
15.3 |
2.8 |
2.8 |
- |
11 |
12.5 |
- |
|
| 16-11E |
- |
16 |
11 |
2.4 |
2.4 |
4.8 |
3.2 |
8.6 |
- |
|
| 188EE |
- |
18.8 |
7.7 |
2.35 |
2.35 |
4.7 |
4.7 |
5.35 |
- |
|
| 19EE(18.8) |
42 |
18.8 |
21 |
5.2 |
3.3 |
6.8 |
2.7 |
31.6 |
21 |
|
| 19EI |
15 |
19 |
12.5 |
2.5 |
2.375 |
4.75 |
4.75 |
10 |
- |
|
| 19LE |
- |
19 |
15 |
2.5 |
2.375 |
4.75 |
4.75 |
12.5 |
- |
|
| 185LE |
- |
19.05 |
13.49 |
2.38 |
2.38 |
4.76 |
4.76 |
11.11 |
- |
|
| 185LE(GAP) |
- |
19.05 |
13.49 |
2.38 |
2.38 |
4.76 |
4.76 |
11.11 |
- |
|
| 186EI |
11.15 |
19.08 |
8.75 |
2.4 |
2.385 |
4.77 |
4.77 |
6.35 |
- |
|
| 186LE |
- |
19.04 |
11.13 |
2.4 |
2.38 |
4.76 |
4.76 |
8.73 |
- |
|
| 187EI |
15391 |
19.08 |
13.51 |
2.4 |
2.385 |
4.77 |
4.77 |
11.11 |
- |
|
| 187LE |
- |
19.08 |
15.9 |
2.4 |
2.385 |
4.77 |
4.77 |
13.5 |
- |
|
| 19.51LE |
- |
19.51 |
14.7 |
3.7 |
3 |
4.5 |
4.505 |
11 |
- |
|
| 20EE ATYPE |
20.2 |
20 |
10.1 |
3 |
3 |
6 |
4 |
14.2 |
10.1 |
|
| 20EE BTYPE |
20 |
20 |
6 |
3 |
3 |
6 |
4 |
14 |
14 |
|
| 22EE |
24 |
22 |
12 |
3 |
3 |
6 |
5 |
18 |
12 |
|
| 22LE |
28 |
22 |
14 |
3 |
3 |
6 |
5 |
22 |
14 |
|
| 24EI |
18 |
24 |
15 |
3 |
3 |
6 |
6 |
12 |
- |
|
| 24LE |
- |
24 |
18 |
3 |
3 |
6 |
6 |
15 |
- |
|
| 25.4E |
- |
25.4 |
12.7 |
3.18 |
3.175 |
6.35 |
6.35 |
9.525 |
- |
|
| 24-25LE |
- |
25.4 |
19.05 |
3.175 |
3.175 |
6.35 |
6.35 |
15.875 |
- |
|
| 24-25EE |
19.05 |
25.4 |
6.35 |
3.175 |
3.175 |
6.35 |
6.35 |
12.7 |
12.7 |
|
| 24-25EE(GAP) |
19.05 |
25.4 |
6.35 |
3.175 |
3.175 |
6.35 |
6.35 |
12.7 |
12.7 |
|
| 26-27EE |
27.01 |
31.75 |
9.45 |
4.77 |
4.76 |
9.53 |
6.35 |
17.47 |
17.47 |
|
| 27EE(GAP) |
- |
31.75 |
17.45 |
4.75 |
4.75 |
9.55 |
6.35 |
12.7 |
- |
|
| 28EI |
25 |
28 |
21.5 |
3.5 |
3.5 |
7 |
7 |
18 |
- |
|
| 32EE |
32.24 |
31.97 |
16.12 |
4.65 |
4.75 |
9.47 |
6.5 |
22.94 |
16.12 |
|
| 375EI |
28.55 |
34.93 |
23.8 |
4.75 |
4.78 |
9.53 |
7.92 |
19.05 |
- |
|
| 35EI |
29.5 |
35 |
24.5 |
5 |
5 |
9.6 |
7.7 |
19.5 |
- |
|
| 41EI |
33 |
41 |
27 |
6 |
6 |
13 |
8 |
21 |
- |
|
| 46.83EI |
38.1 |
46.83 |
31.75 |
6.35 |
6.35 |
11.11 |
11.51 |
25.4 |
- |
|
| ZCT 12.2 |
12.2 |
8.8 |
- |
- |
- |
- |
- |
- |
- |
|
| ZCT 13.0 |
13 |
9.3 |
- |
- |
- |
- |
- |
- |
- |
|
| ZCT 13.5 |
13.35 |
9.85 |
- |
- |
- |
- |
- |
- |
- |
|
| ZCT 15 |
15 |
11 |
- |
- |
- |
- |
- |
- |
- |
|
| ZCT 17.8 |
17.8 |
13.35 |
- |
- |
- |
- |
- |
- |
- |
|
| TAPE |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
